Steel Partitions

Steel partitions are a cost-effective solution for sub-dividing factory and warehouse buildings, to create individual rooms for manufacturing or storage purposes. Due to its modular design steel partitions are ideal to create manufacturing rooms, security stores, clean rooms, inspection rooms and offices.

All steel partitions are pre-manufactured then delivered to site to ensure minimal disruption, opposed to conventional stud and blockwork systems. Also, due to its modular construction all panels can be easily replaced in the event of damage, compared with stud and blockwork systems.

Our standard range of steel partitions have a wipeable epoxy powder coated finish, available in the following designs: –

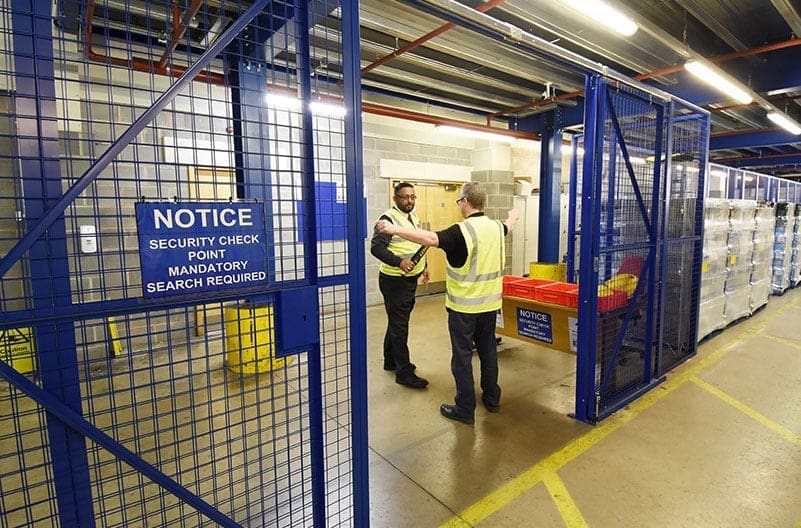

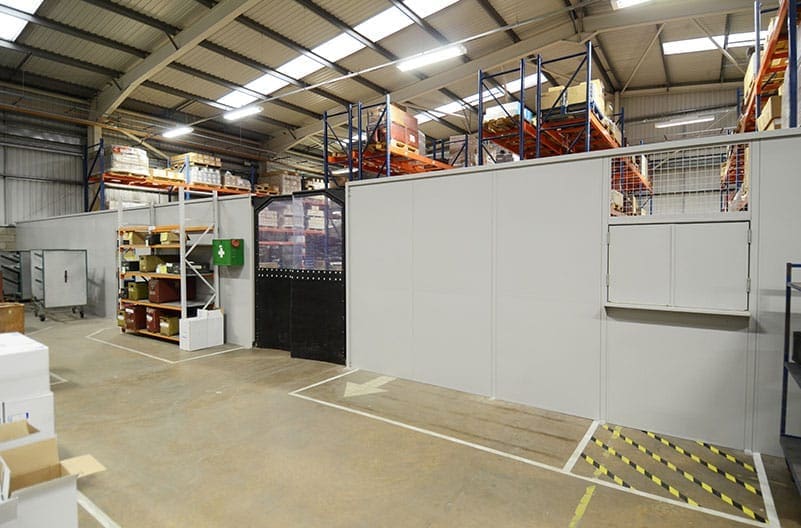

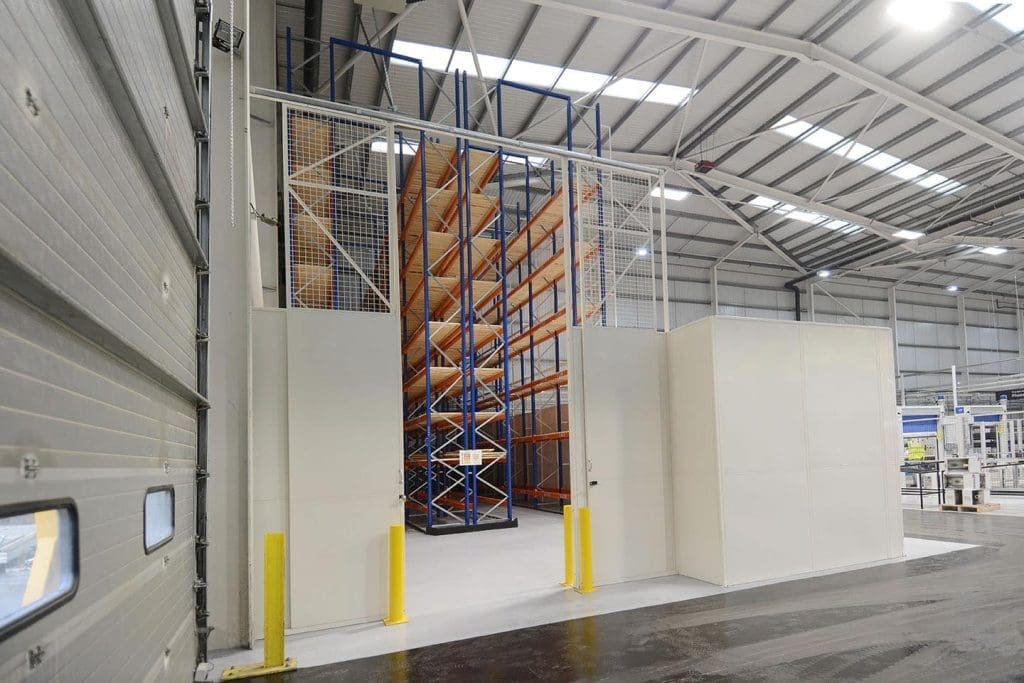

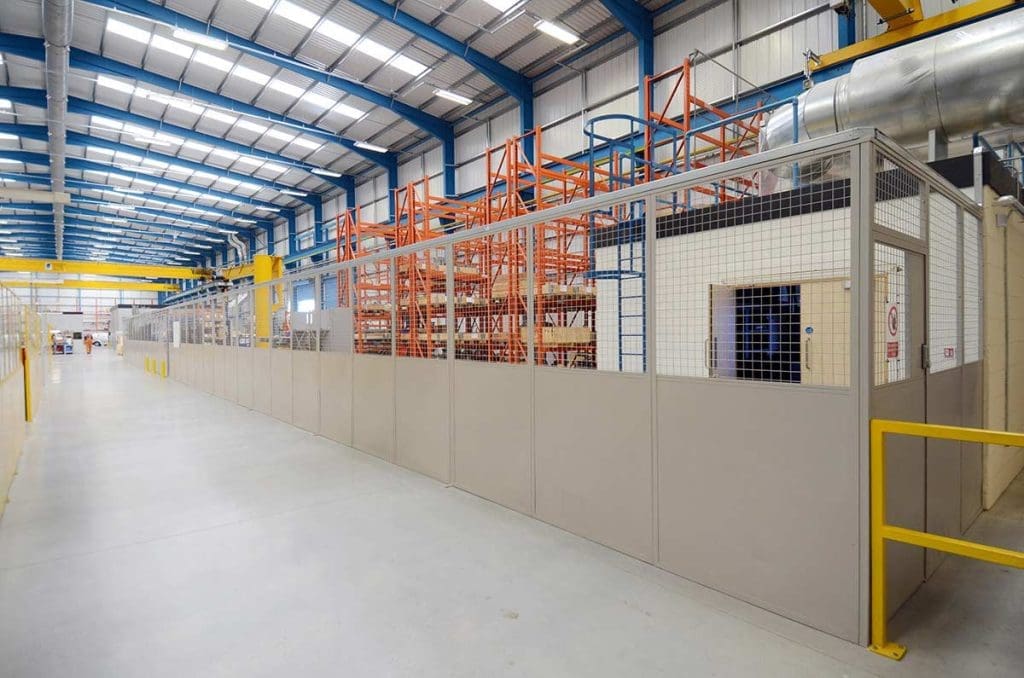

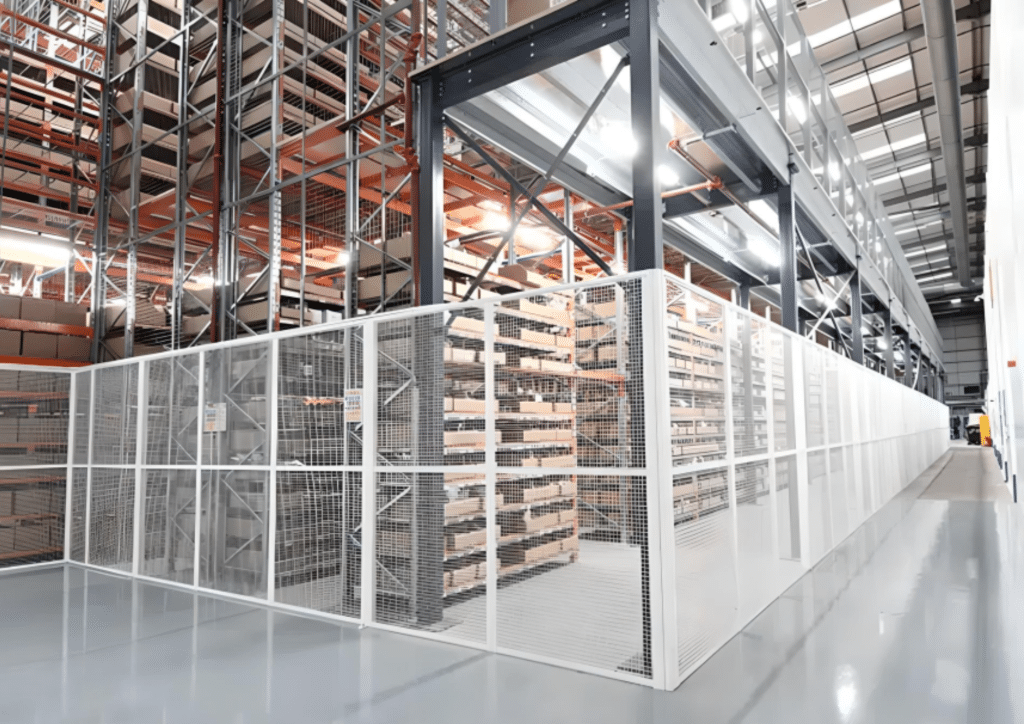

Industrial steel partitioning

Industrial steel partitioning is a single skin system suitable for a wide range of applications, such as offices, production rooms, security stores, inspection rooms, etc.

All industrial steel partitions are available in a variety of panel widths, with standard heights ranging from 2,400mm, 2700mm or 3000mm high. All steel partition wall panels can be extended to achieve a height of 10,000mm.

Industrial steel partitioning is available in several panel configurations such as all solid, solid/glass, solid/glass/solid, solid/mesh, and all mesh.

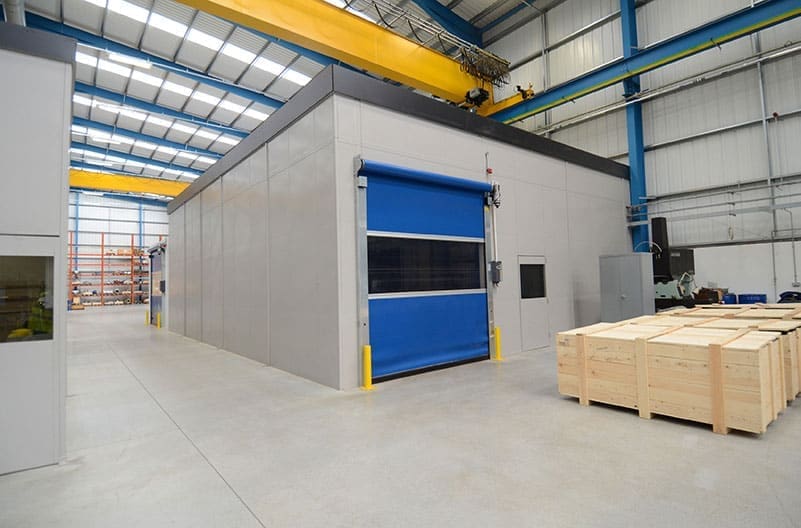

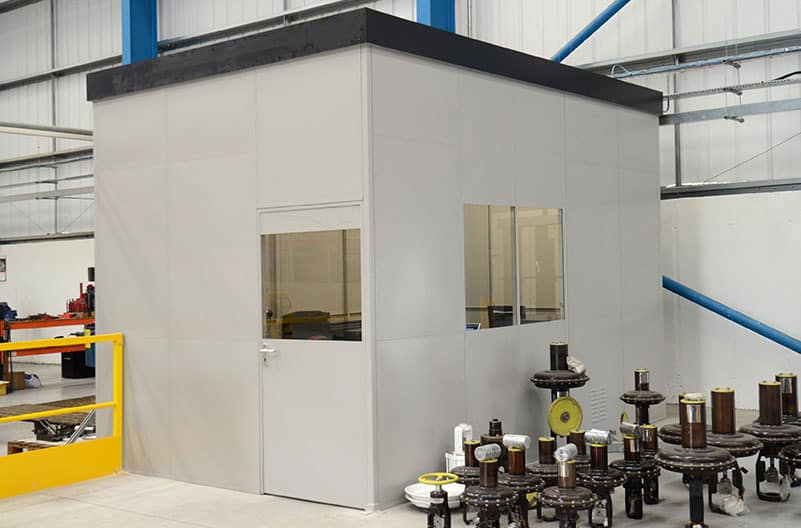

Industrial office partitions

Industrial office partitions is a double skin steel partitioning system ideally suited for offices and production rooms, having a rockwool mineral fibre infill to provide sound attenuation and heat retention properties.

All industrial office partitions are available in a variety of panel widths and heights ranging from 2,400mm, 2700mm or 3000mm high, available in several panel configurations such as all solid, solid/glass or solid/glass/solid.

Industrial office partitions can also be specially manufactured to provide 30/60-minute fire resistant.

Clean room partitioning systems

Clean room partitioning systems are designed for manufacturing areas where a clean processes is undertaken. Like double skin partitioning, our specially designed clean room partitioning systems are fitted with 2 – line panel joints and flush fitted glazing, designed to achieve a Class 5 clean room environment when used with the appropriate HVAC systems.

Anti-static/electro dissipative and antimicrobial powder coatings are also available.

Hygienic partitioning systems

Hygienic partitioning systems are generally required for clean areas such as laboratories, hospitals, food preparation areas and factories where dust and dirt may be an issue within the working environment and manufacture.

The system we provide comprises of a High-Pressure Laminate (HPL) composite board, which can be cleaned effortlessly.

HPL has a white smooth faced available in widths of 1,200mm and heights of up to 4,800mm, which can easily be cut onsite to accommodate service ducts, windows, etc.
