CHALLENGES

Within an area of 1,730 sq ft (161m2) Olympus Global required a secure store to accomodate 330 pallet locations of mixed consignment stock.

The proposed scheme had to incorporate suitable lifting equipment to enable full pallets to be stored and retrieved, as well as enabling inidividual SKU’s to be picked from mixed pallets.



HOW WE SUCCEEDED



After carrying out an onsite survey Teepee projects department provided Olympus Global within a rail guided VNA  Man-Up forklift truck solution. This enabled Olympus Global to maximize the available clear headroom of 9,900mm, operating within aisles of 1450mm.

By offering a Man-Up VNA solution this allowed full pallets to be stored and retrieved, with the added advantage of allowing the forklift driver to pick individual SKU’s from mixed pallets. Furthermore by offering a low profile guide rail system opposed to a wire guided system, this enabled the VNA forklift to operate at maximum speed without the unnecessary expense of grinding back the floor or the installation of wire guidance.

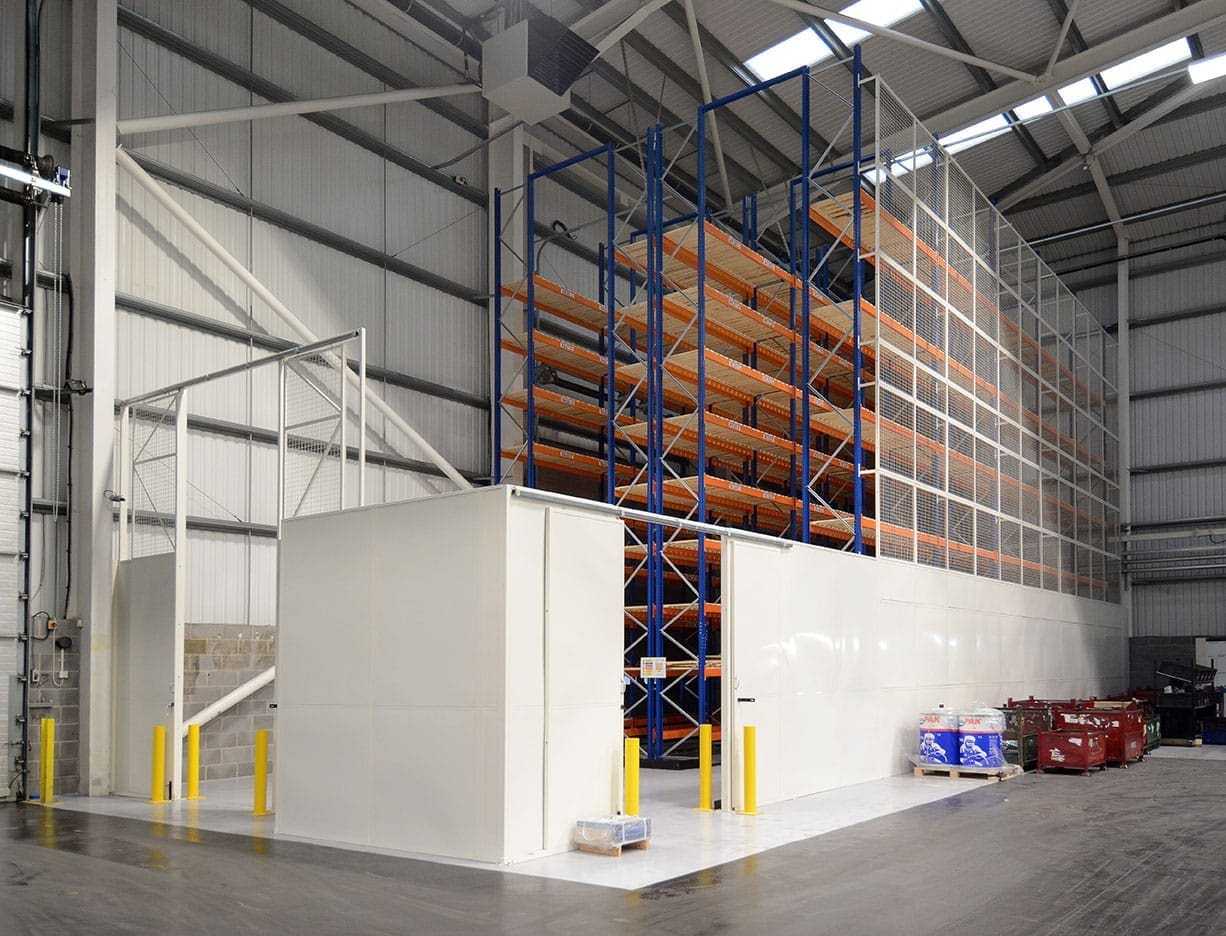

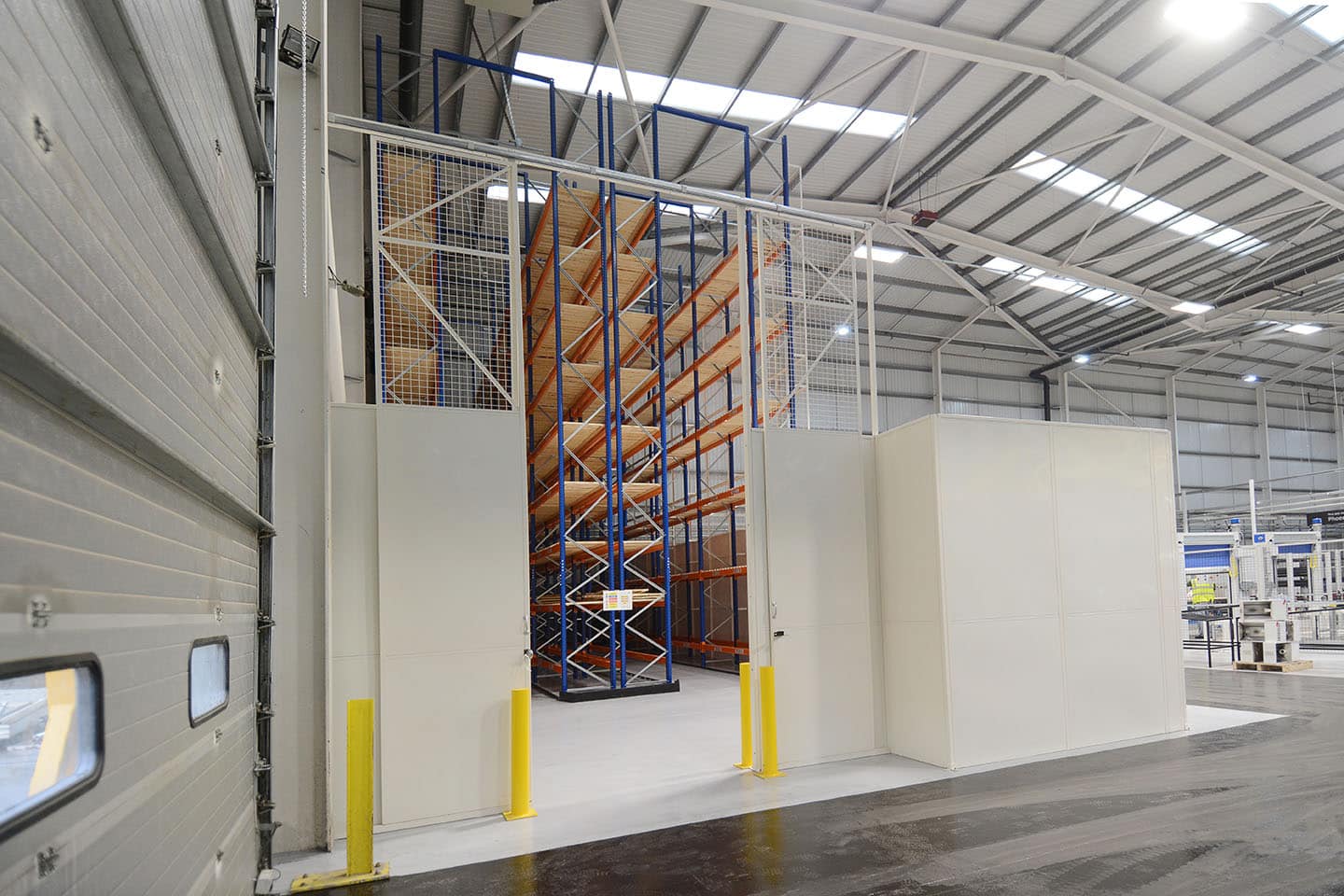

To create the secure store Teepee installed solid single skin steel partitioning at 3000mm high, then anti-collapse weld mesh guarding 9700mm being supported off the racking uprights to prevent any pallets falling onto personnel operating within the area.

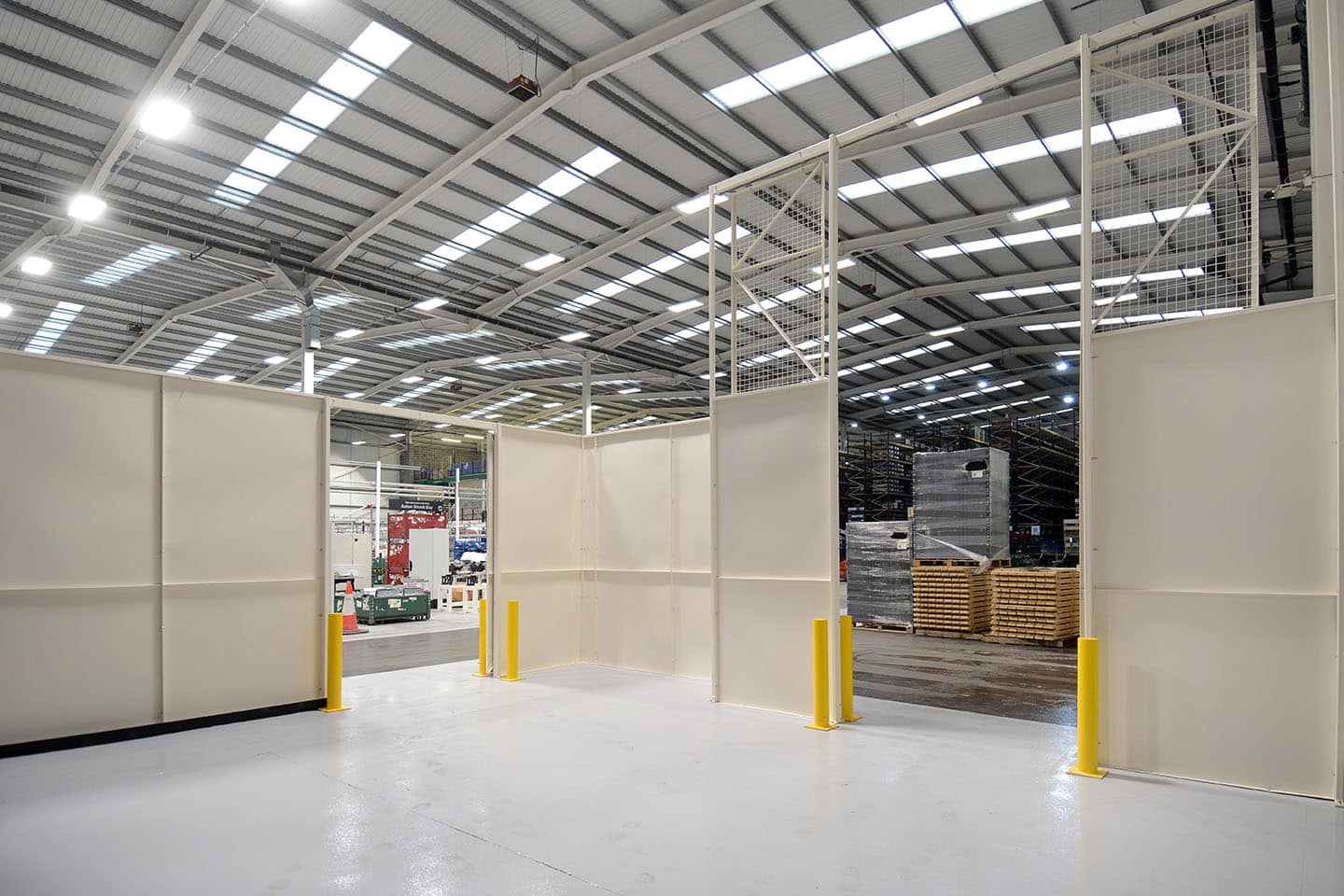

Finally due to confined space two bi-part opening doors were installed to enable forklift access, complete with steel protection guards fitted either side.



OUR SOLUTION PROVIDED

  • High density racking storage system, enabling pallets to be individually picked at high level using one forklift within aisles of 1450mm.
  • All beam levels fitted with timber decking to prevent pallets from sliding off the beams, due to individual SKU’s being picked from mixed pallets.
  • Low profile guide rail system installed to provide maximum operational speed, and prevent unnecessary expenditure grind floor slab within aisles / installing wire guidance system.
  • Single skin steel partitioning installed to create a secure store.
  • Anti-Collapse guarding supported off racking uprights to prevent pallets from falling onto personnel operating within the vicinity.
  • Bi- Part opening steel doors with openings of up to 5100mm high were supplied due to the confined space, allowing forklift access.
  • Racking labeling system installed throughout, to provide pallet identification.
