Warehouse Racking Layout


When it comes to designing your warehouse, you can never plan enough. Do you know what layout you will have? What will your inventory management be like? What stock are you storing? How will it be handled?

There are many different aspects and principles to consider. Yet get the planning right, choose the correct racking and it can provide numerous benefits for your business. It is all about making the most out of your warehouse to increase efficiencies, improve productivity and meet customer needs.

We take you step-by-step through the different design aspects you must consider when talking to a racking supplier. If it does get too overwhelming, don’t forget that at Teepee we have a team of experienced warehouse pallet racking experts of 35 years who can work with you to design your perfect solution. We can take all the planning and designing weight off your shoulders, putting put your warehouse in the best hands.

Are you ready to start?

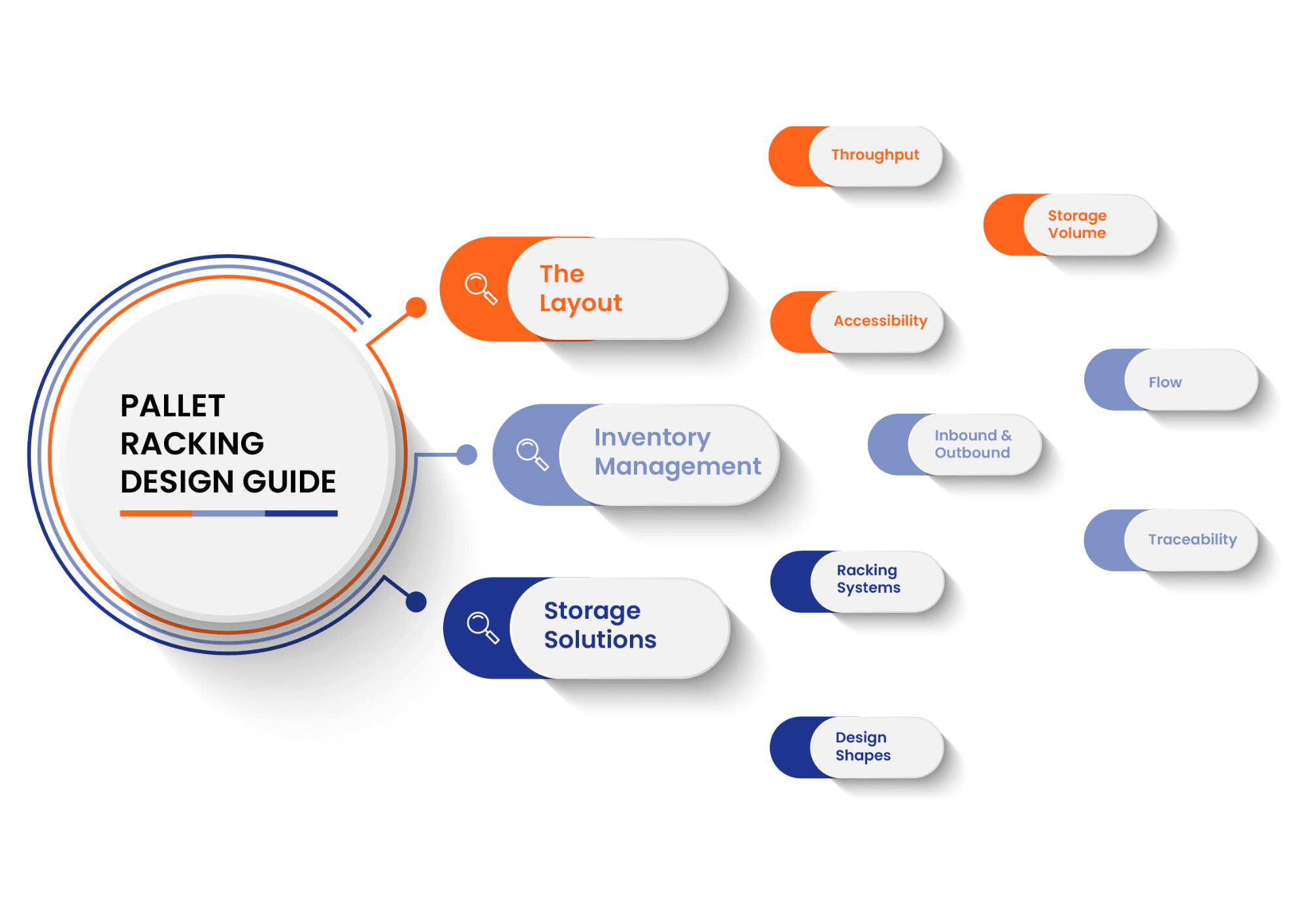

The Layout

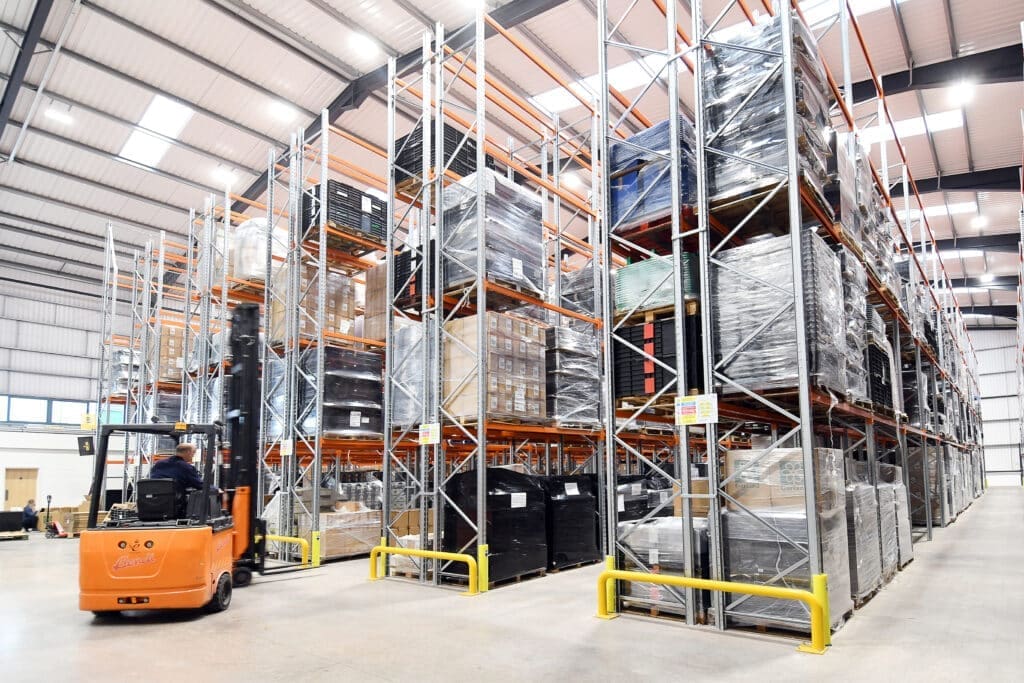

Warehouse racking layout

The first place to start is with the layout of your storage solution.

Storage Volume

Every warehouse has a maximum storage capacity. One of the most common issues is running out of space.

which means you either start planning to move to a bigger warehouse or rent additional space. Yet understanding how to maximise your constraints can make the most of the space with the flexibility to adapt in the future.


How many pallets will there be passing through the warehouse? Once you have an idea of quantity it can help determine the right choice and layout of your storage system. For example, if you have a large number of pallets per SKU then a bulk storage solution such as a drive-in/drive-through racking will be worth considering but if you have multiple SKUs, you may need more than one type of storage system.


Of course, ease of accessibility to your stock will ensure orders get out of the door as quickly as possible. Consider who and what equipment is involved in the picking and packing process. This will not only drive productivity but will also improve safety standards. After all, if an obstruction stops a team member from accessing stock or no consideration is given to safe working zones you could run the risk of a serious accident occurring.


Inventory Management

warehouse racking layout support

Getting your inventory management process in order is the optimum way to choose the best warehouse pallet racking system. At the same time it will also support your throughput of stock and drive ROI.

How will you manage the inbound and outbound stock moving through the warehouse? Once the pallets arrive, what would the flow be like, where would they go and what is their journey? The team should make sure that the shipment is correct and moved to a designated racking system where it can be stored until used in the outbound process.

This will then lead to the matter of traceability and always knowing what is inside the pallet and how it travels from point A to point B. By putting traceability as one of the priorities, you can achieve quality control and enhanced productivity.


Storage Solution

warehouse racking layout support

Finally, on to the backbone of your warehouse – finding a racking system and design shape that works best for your business.

Racking Systems

With over 30 years of experience in the logistics industry, at Teepee we understand how getting the correct warehouse racking system in place will help you achieve optimum productivity. There are multiple pallet racking options and the type you need depends on your warehouse, stock and processes. If you would like more information, head over to our blog ‘Your guide on warehouse pallet racking systems’ which covers what each system is for, how it works, and key advantages.

Once you’ve chosen the best pallet racking, it’s on to the design shape of the system.


Design Shape

  • U Shape is a simple design that allows inventory to move into and out of storage at different rates. As the name suggests, the warehouse pallet racking is set up in a ‘U’ shape with shipping and loading at the front the storage is at the back. From a land use perspective, it is known as the most economical design. It can also split the warehouse into three different zones – fast-moving storage and pick faces at the front, medium-moving storage in the middle, and slow-moving storage at the back.  This reduces the distances travelled to access the stock.
  • I Shape allows inventory to move into and out of the storage at a uniform, fast rate. There is just one direction meaning the receiving area is at one end and the dispatch area at the other. If you do pick this shape, remember that the inventory will need to travel the whole length of the warehouse before being able to retrieve the stock.
  • L Shape allows inventory to move into and out of the storage at a cross-docking operation. Loading and reception areas are on one side of the warehouse and picking and shipping are on the other. The rest of the space is then filled with storage.


Warehouse Pallet Racking Safety

Safety and a warehouse should always go hand-in-hand. After all, the consequences of something going wrong with your racking while holding tonnes of stock is not worth considering.

Yet, in an industry that is largely unregulated, knowing how to trust the experience of your racking supplier can be difficult to navigate. Does your supplier have the appropriate credentials to assure that your racking system is safe? Do they meet and exceed regulations required by industry standards?

One way to get reassurance on the quality and safety of your supplier is to work with a SEMA Distributor Company (SDC). For over 50 years SEMA has led the way on providing best practice standards within the storage equipment industry. As one of their SDCs, every three years Teepee has to demonstrate their high level of commitment to industry standards by submitting ourselves to an independent assessment. During the rigorous process, we must show that we adhere to over 40 regulations, industry standards, Codes of Practice and legislative requirements to retain our membership and prove our credentials.

We also follow industry best practice advice and use SEIRS registered installers. SEIRS is an initiative run by SEMA which trains warehouse pallet racking installers on the methods and processes to safely and correctly install pallet racking.


Get in Touch

Looking to maximise your warehouse? Get in touch and see how one of our team can help you with the design of your racking. At Teepee we have 35 years of experience, providing services from the very beginning right through to the completion of the project. We can assure you that you will be supported through every key stage.
